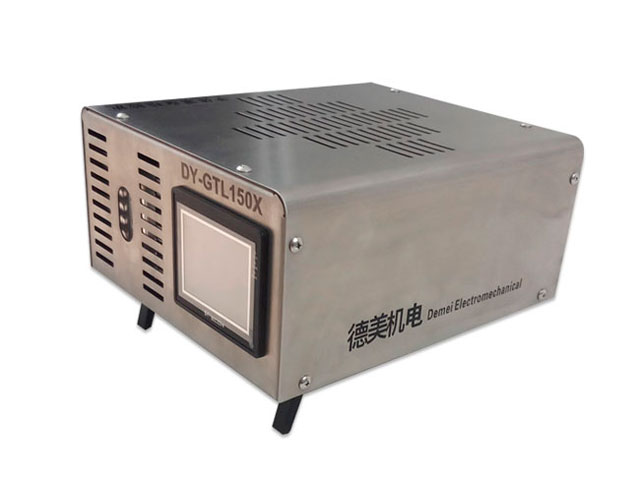

DY-GTL150X Special Customized Dry Block Temperature Calibrator

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

Dry body furnace is also called dry well, dry well furnace, dry type measuring furnace, temperature measuring furnace, temperature calibration instrument, dry type temperature calibration furnace.

Dry body furnace is a kind of convenient to carry, rise and drop the speed is fast, very traditional field heat source (temperature field), dry body furnace adopts high stability temperature control instrument, the homogenizer adopts the alloy material with good heat conduction.

In terms of technology, it is synchronized with the advanced technology at home and abroad, and in terms of insertion depth, horizontal temperature field, vertical temperature field and other technologies, it is in advanced level.

Used in the required temperature range, is widely used in pharmaceutical (GMP humid heat sterilization, dry heat sterilization), machinery, shipbuilding, chemical, biological products, power plant substation, steel works, measurement testing, scientific research and other industries need on-site calibration temperature.

[Product Features]

1. More portable and lighter.Higher accuracy.

2. Human-machine interface, Chinese display, touch operation, beautiful and generous.

3. One-key temperature setting, easy operation, automatic adjustment of heating power.

Rapid heating, temperature control.

4. According to customers' requirements, you can learn the language interface of any place in the world, which is convenient for export.

[Technical Indicators]

1.Temperature Range: -15℃~125℃

2.Display Resolution: 0.1℃

3.Accuracy: ±0.25℃

4.Control Mode: Touch Screen

5.Depth of Checking Hole: 100mm

6.Diameter of Heat Block: 13.3mm

7.Diameter of Checking Hole: 3.2mm、4.7mm、6.3mm、9.5mm

8.Default Display: English Display full color LCD   ℃ or ℉

9.Power Supply: 220V AC 50HZ

10.Weight: 5.8Kg

11.Size: L290mm×W250mm×H150mm
