Pressure calibrator is an important part of digital pressure calibration system.Compared with the products of the same industry at home and abroad, the pressure calibrators produced by our company are at the forefront of similar products in terms of sealing, pressure portability and micro regulation.
According to the relevant national standards and the requirements of the relevant standards of the Ministry of Machinery, after many tests, the pressure calibrators produced by our company are more than several times of the relevant standards.

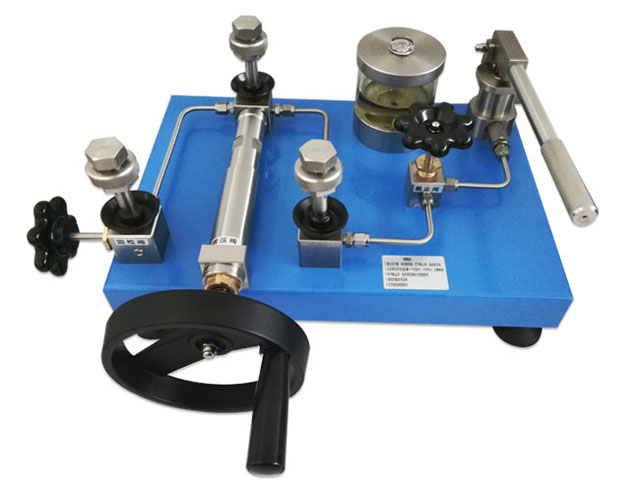

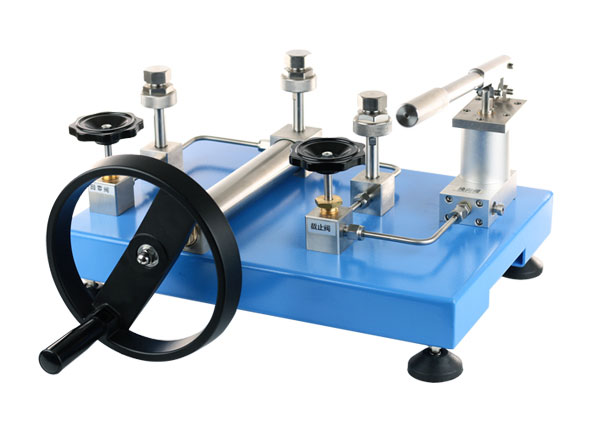

DY-YL60 desktop manual hydraulic source (0-60 mpa) by a hand pump, water bottle, pump, valve, check valve and pressure output interface of curing the overall structure, product structure is reasonable, the individuals that were lighter and has a good seal performance, smooth booster, booster speed, energy saving, the advantages of simple operation, is the piston pressure source 's new production.
[Technical indicators]
1. Pressure: (-0.085~60)MPa
2. Stability: 0.05%F·S
3. Working Medium: Oil or pure water
4. Output Interface: M20*1.5
5. Size: (445*350*180)mm
6. weight: 15Kg
